AVIATOR

    ARIA

    5 way Floorstand / 2 Pieces


    It is amazing how Aria it's capable to make music sound intimate and precise, the ease with it sculpted in three dimensions the instruments in space. The woofer at the top of the cabinet has, in this particular model, a specific task. All other models in the Aviator series interact with the environment to limit unwanted reflections, increasing the intelligibility of music. Aria dramatically improves this by employing a variation that allows the regularization of the entire audio spectrum. The driver positioned in the upper part of the cabinet – a 170 mm woofer – is responsible for this extraordinary result.



    Next level Performances

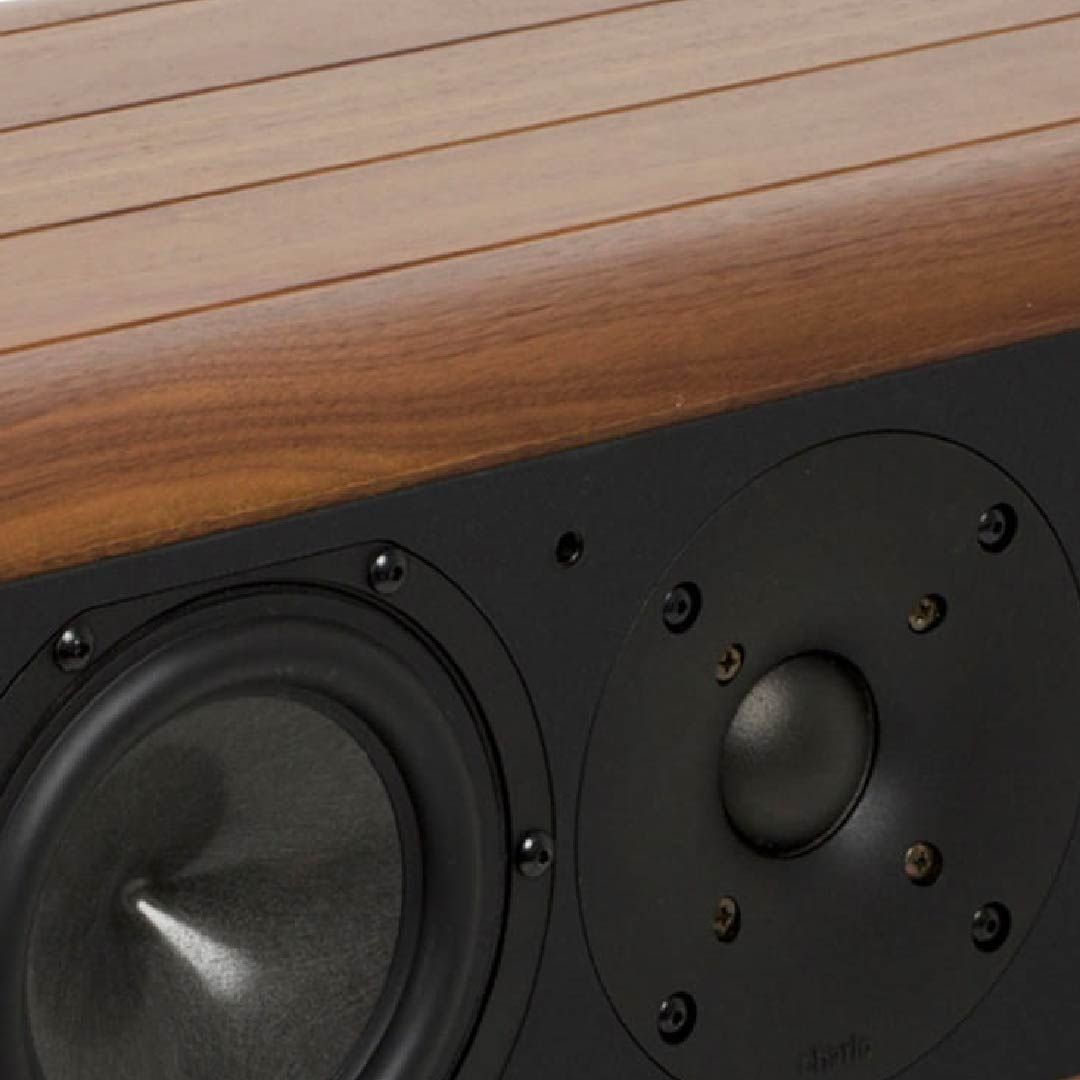

    A full-bodied, neutral sound guaranteed by the T-38 tweeter that provides the best performance with any kind of interpretation and the use of a 130mm or a 160mm woofer to produce excellent performance even in normal domestic environments where little to no acoustic considerations have been made. Sturdy and stylish, each speaker of Aviator line fits perfectly in every room, always offering a detail-rich sound reproduction amazing for low-frequency extension and dynamics.

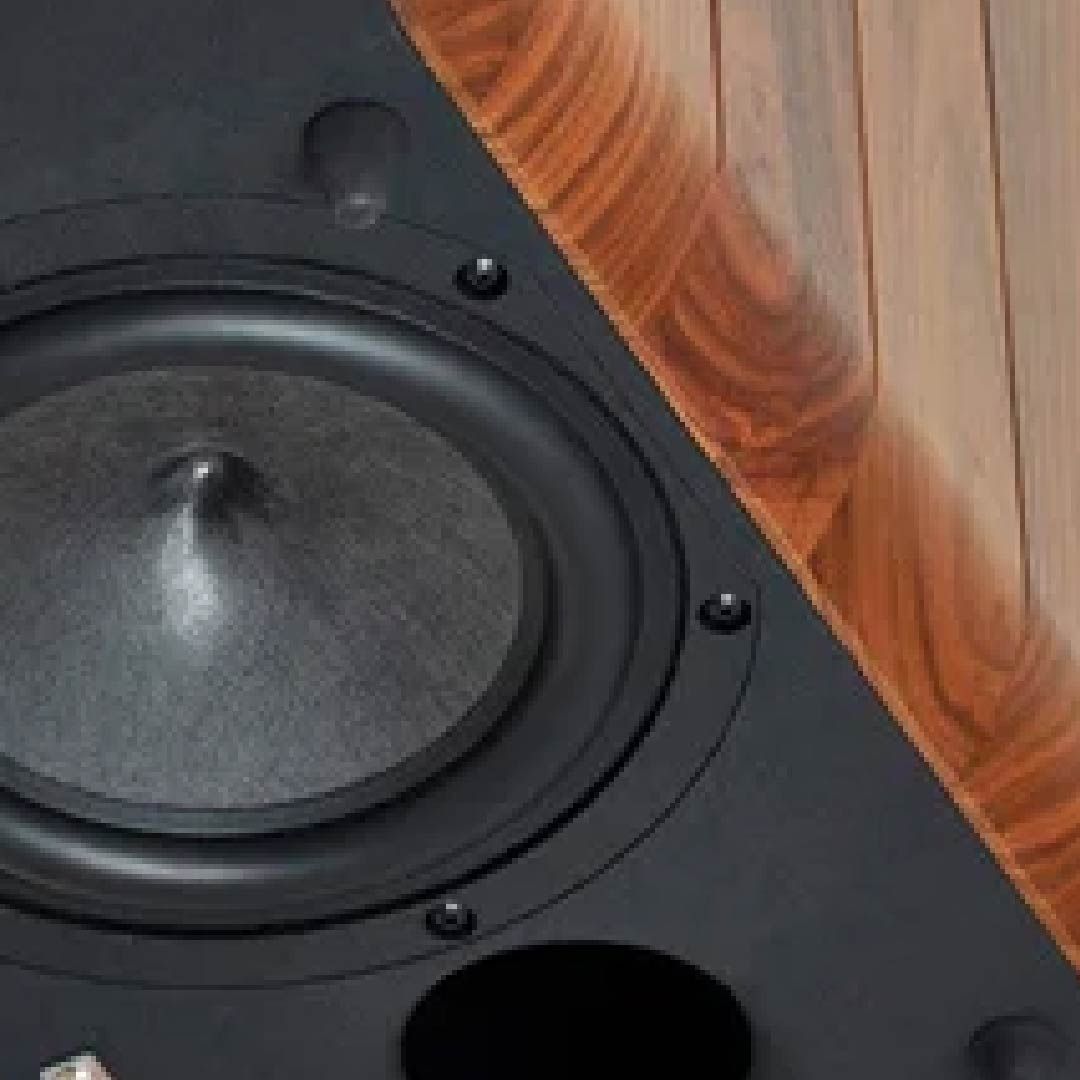

    Back Woofer

    The floorstandings models of the Aviator line are equipped with an additional woofer, also derived from Academy ones as the front drivers, in the rear part of the cabinet. Amelia uses a 130 mm woofer, Cielo a 160 mm and Aria a 200 mm.


    All in addition to the woofer of the same size placed on the bottom of the speaker. This particular configuration has been chosen to increase the performance of the speaker and make the sound even more enveloping


    • Technical Data

      Low Frequency Load

      Vented NRS


      Configuration

      5 -way Reversed Vertical Alignment Floor Standing


      Drivers

      1 tweeter 38mm T38Waveguide

      1 Midrange 130 mm ROHACELL® Poly-Ring NeFeB motor

      1 Woofer 165 mm ROHACELL® Full-Apex™ Poly-Ring NeFeB motor

      2 Sub 200 mm Natural Fibres NeFeB motor


      Sensitivity

      95 dB SPL normalized to 1 m / 2.83 Vrms / decorrelated L/R

      pink noise in ITU-R BS 1116-1  compliant listening room


      Low Frequency

      35 Hz @ -3dB referred to C4 WETS


      5 Way Reversed Array

      Conventional crossover frequency concept substituted by overlapping range

      From 150 to 200 Hz

      Bottom sub-Back sub-Woofer-Midrange

      From 1kHz to 1.5 kHz

      Woofer-Midrange-Tweeter


      Rated Impedance

      Modulus 4 Ω (min 3.0) Argument ± 36°

    • Cabinet & Dimension

      Cabinet

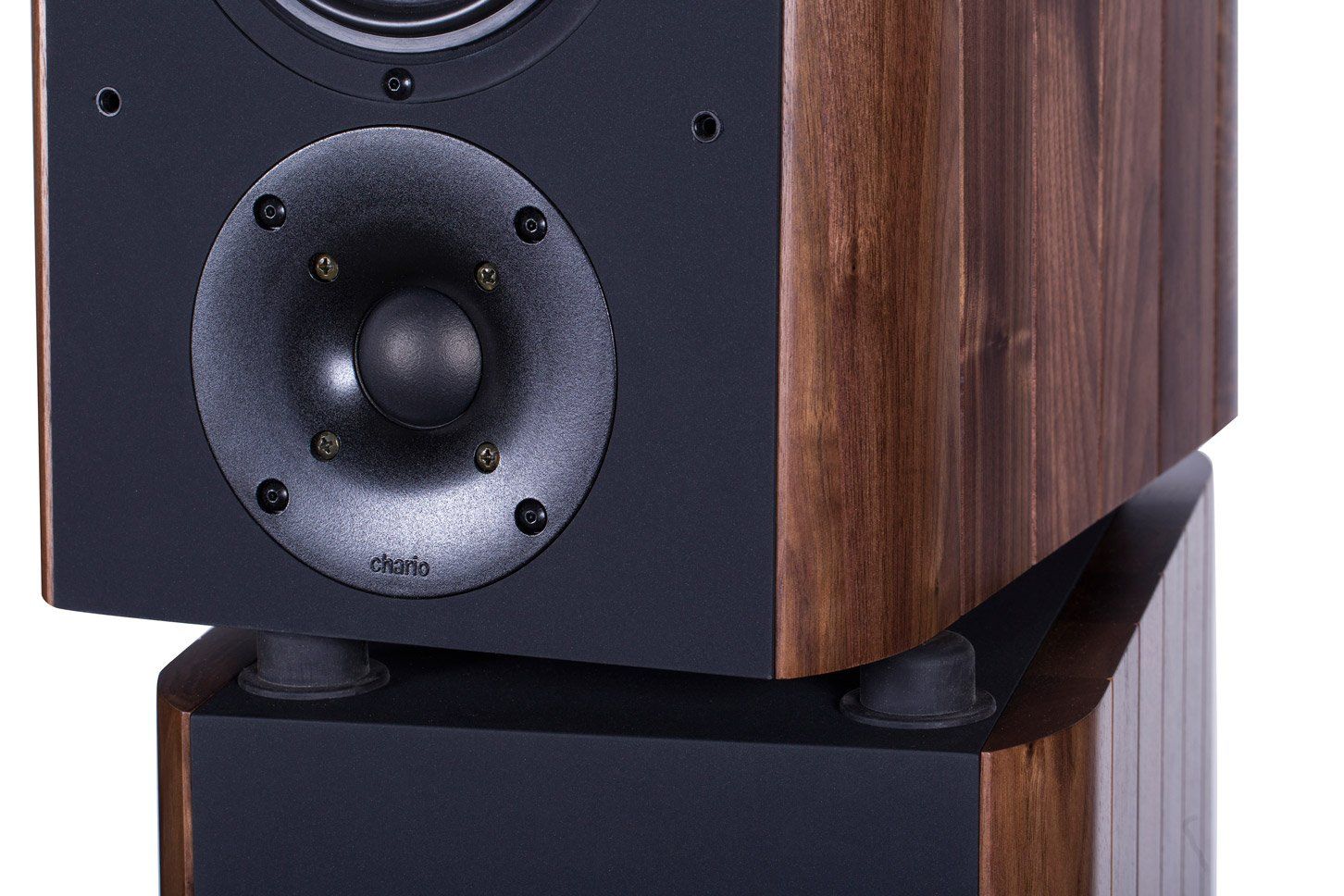

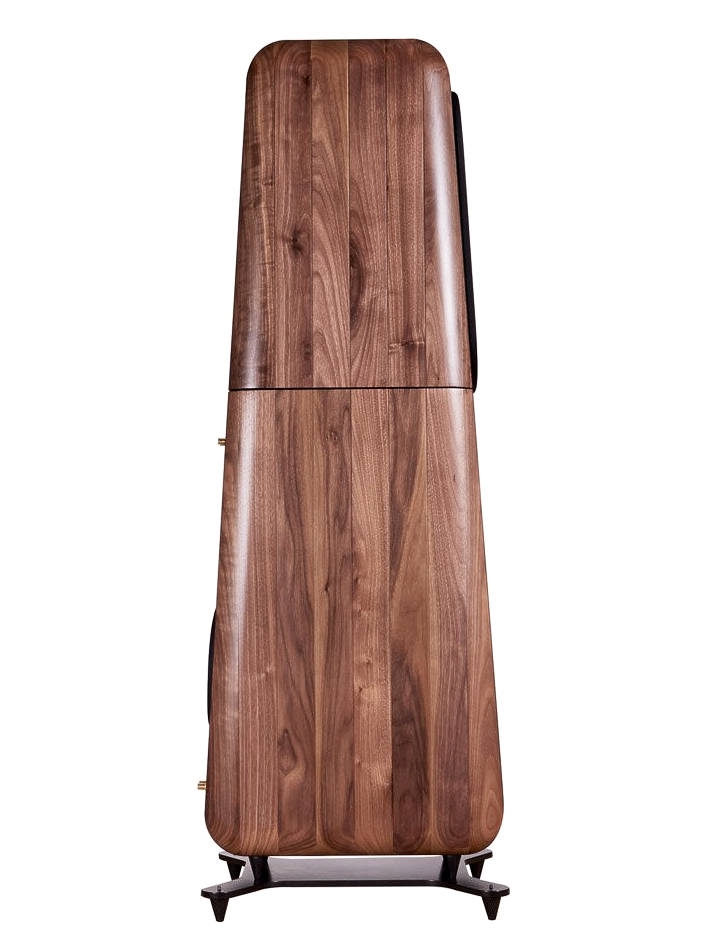

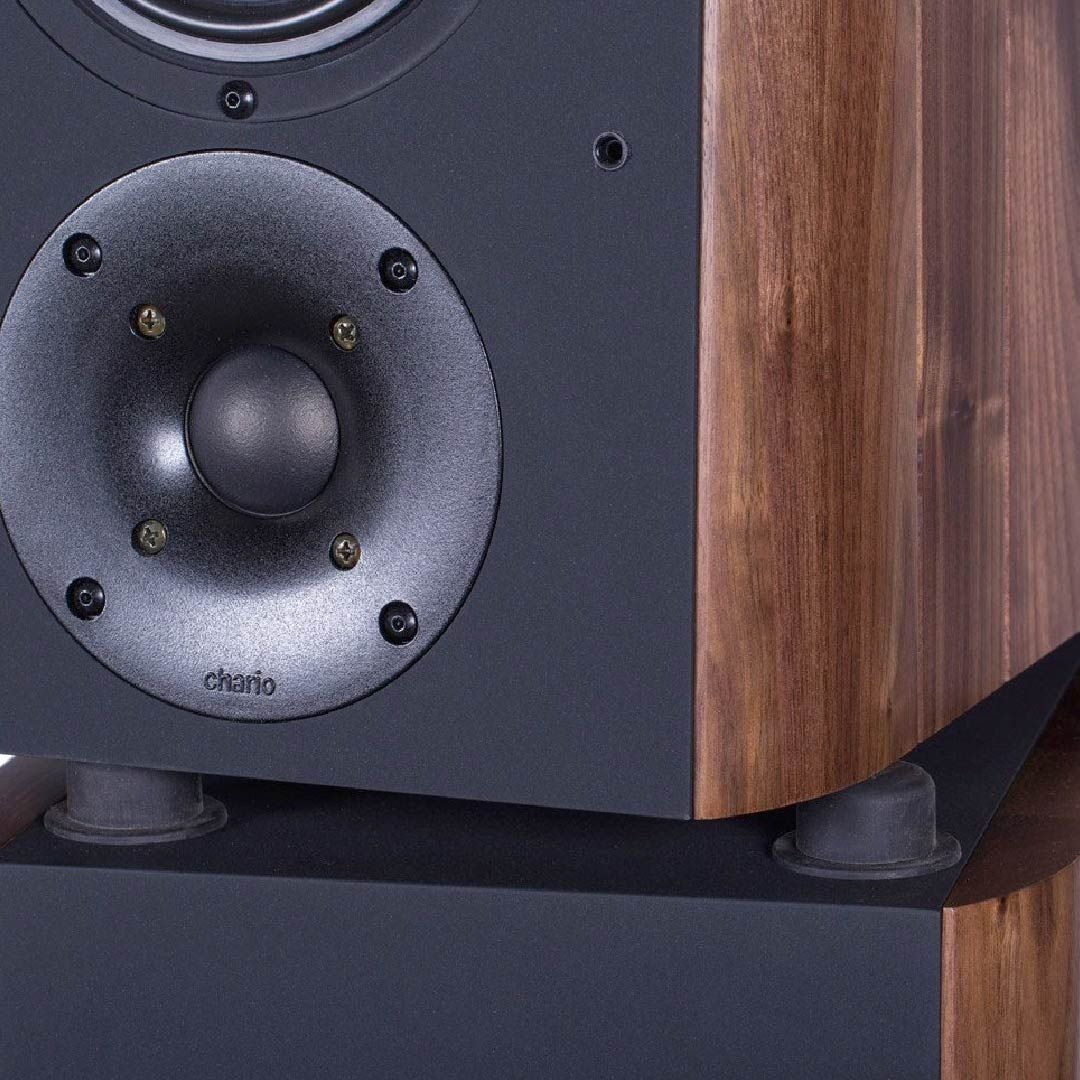

      Solid walnut and HDF. The structure comprises two cabinets:

      the lower contains two subwoofers; the upper contains one woofer, one

      midrange and one tweeter. The two wood cases are separated by four

      cylindrical proprietary-engineered elastomeric puffers

      acting as vibration decouplers to dissipate mechanical energy by orthogonal

      elongation


      Size & Weight

      1610 x 400 x 580 mm (H x W x D) / 100 Kg

    • Acoustic Environment & Amplification

      Speakers Orientation

      Speakers should be tilted inward facing the listener


      Listening Distance

      Optimum speaker-listener distance > 3.5 m


      Listening Layout

      A carpeted floor in front of the speakers is recommended


      Side and Back Walls

      Should be at least 1m away from the speaker front baffle


      Suggested Amplifier

      Normal amping 250W/4Ω Max average power

      Bi-amping 130W/4Ω Max average power

    Psychoacoustics Target

    Aviator Aria


    As any other Chario project also for Aviator line we have studied different aspects of science, to its realization: the electroacoustic is the basic research that allows us to realize the components through the study of real behavior and application of the fundamental electroacoustic parameters.


    Psychoacoustics allows us to understand how our perceptual system (ears, eyes, brain, smell etc ) perceives the components of reproduction and how it decode them.


    The acoustic environment allows us to understand how the environment affects drastically the reproduction, then how the energy is transferred into the listening room and what the listener receives.


    The proper interaction of the results of scientific research in these fields allow us to provide a natural sound and respectful of the main component to be considered: the man.
