AVIATOR

    CIELO

    3 way Floorstand


    A powerful loudspeaker capable of transmitting with its only presence a sense of extraordinary power. Its beauty lies not only in the beauty of solid wood side panels but in the extraordinary performances Cielo is capable.


    The ability to comprehend, in a clear and complete way, the complex music structure at low frequencies brings our perceptive system into a serenity and relaxation area, minimizing listening fatigue and delivering the highest quality and maximum perceptibility.


    The size of the virtual stage will be exciting, the width and the depth will be sensational as well as the detail that will take you realistically at the time of the original event, as if you are present at the concert you are listening to.





    Main Component

    A full-bodied, neutral sound guaranteed by the T-38 tweeter that provides the best performance with any kind of interpretation and 160mm woofer on the front of the speaker projected to produce excellent performance even in normal domestic environments where little to no acoustic considerations have been made. Sturdy and stylish, Cielo fits perfectly in every room, always offering a detail-rich sound reproduction amazing for low-frequency extension and dynamics.


    As any other Chario project also for Cielo we have studied different aspects of science, to its realization, the electroacoustic is the basic research that allows us to realize the components through the study of real behavior and application of the fundamental electroacoustic parameters. Psychoacoustics allows us to understand how our perceptual system (ears, eyes, brain, smell etc ) perceives the components of reproduction and how it decode them.


    The acoustic environment allows us to understand how the environment affects drastically the reproduction, then how the energy is transferred into the listening room and what the listener receives.


    The proper interaction of the results of scientific research in these fields allow us to provide a natural sound and respectful of the main component to be considered: the man.



    Made by Italians

    The work, the choice of materials, finishes and controls are entirely manufactured in Italy in our manufacturing facilities. All the cabinets of our speakers are made in our woodworks. The production process is handmade. Each model of speaker is realized with a specific cabinet studied as an integral part of the acoustic drawing



    • Technical Data

      Low Frequency Load

      Vented NRS


      Configuration

      3 -way Reversed Vertical Alignment Floor Standing


      Drivers

      1 tweeter 38mm T38Waveguide

      1 midrange 165mm Rohacell® – NeFeB

      2 woofer 165mm Rohacell® – NeFeB motor


      Sensitivity

      92 dBSPL normalized to 1m/2.83Vrms decorrelated L/R

      pink noise / ITU-R BS 1116-1 compliant room


      Low Frequency Cut Off

      40Hz @ -3dB referred to C4 WETS


      Crossover Frequency

      200Hz-1235Hz (4th Order)


      Rated Impedance

      Modulus 4Ω (minimum 3.6Ω)

      Argument +/- 36°

    • Cabinet & Dimension

      Cabinet

      Solid walnut and HDF.


      Size & Weight

      1610 x 400 x 580 mm (H x W x D) / 100 Kg

    • Acoustic Environment & Amplification

      Speakers Orientation

      Speakers should be tilted inward facing the listener


      Ear Listening Height

      Preferably on midrange axis


      Listening Distance

      Optimum speaker-listener distance > 3.5 m


      Listening Layout

      A carpeted floor in front of the speakers is recommended


      Side and Back Walls

      Should be at least 1m away from the speaker front baffle


      Suggested Amplifier

      180W/4Ω Max Average Power

    Stifness and Damping

    Aviator Cielo


    The location of all drivers is already defined in the design stage, and this enables accurate tuning of the relationship between the speaker and the listening-room.

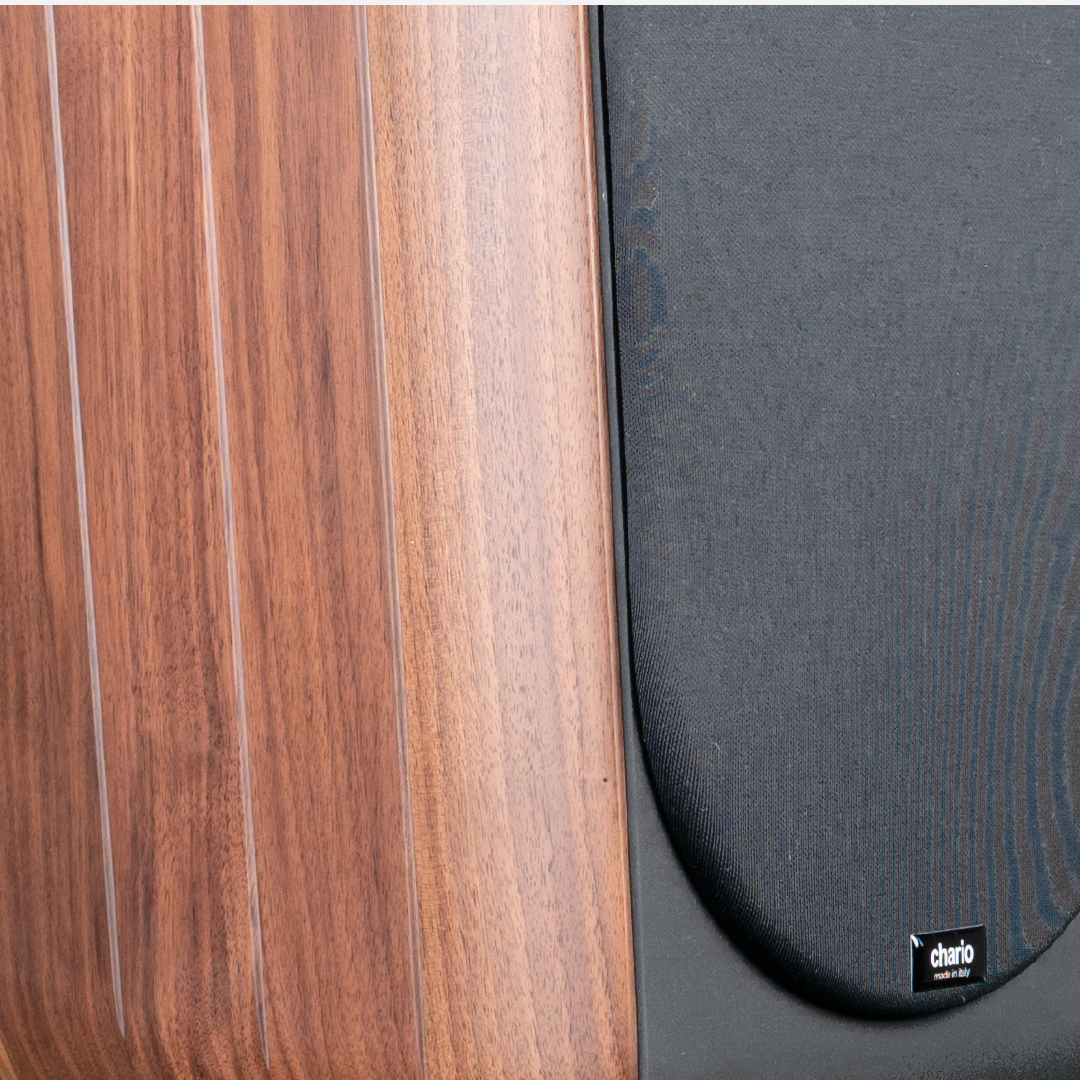

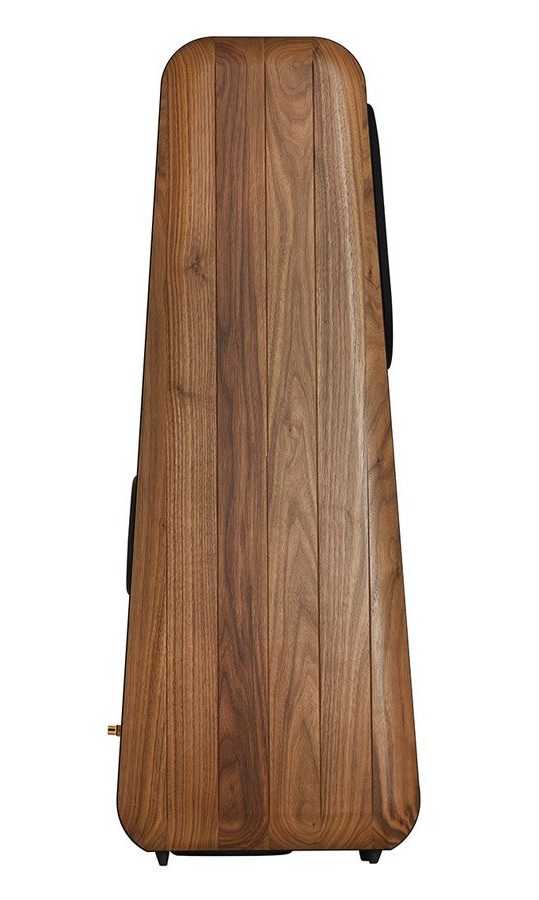

    The Aviator series is characterized in terms of construction for the presence of a central structure and the side panels, commonly known as the sandwich structure. The central body of the cabinet is made of a material composed of resin and wood fiber called HDF (high density fiberboard). Its mass and rigidity ensures the lowest level achievable using materials made from fibers of wood. The side panels are made of solid wood, and are applied to the sides of the central cabinet. This particular structure guarantees an absolute top in terms of stiffness and damping of vibrations that the cabinet moves on its own structure.


    The woofer placed on the back of the loudspeaker helps the subwoofer to minimize the listening fatigue by increasing speaker performance coupled with our proprietary driver technologies and arrangements. The work, the choice of materials, finishes and controls are entirely manufactured in Italy in our manufacturing facilities. All the cabinets of our speakers are made in our woodworks. The production process is handmade. Each model of speaker is realized with a specific cabinet studied as an integral part of the acoustic drawing. Each cabinet contributes to the global pattern of energy emission together with the design of all other parts, from the drivers to the crossovers, from the wrap of the speaker system/environment to the report of the perceptive system


    .
